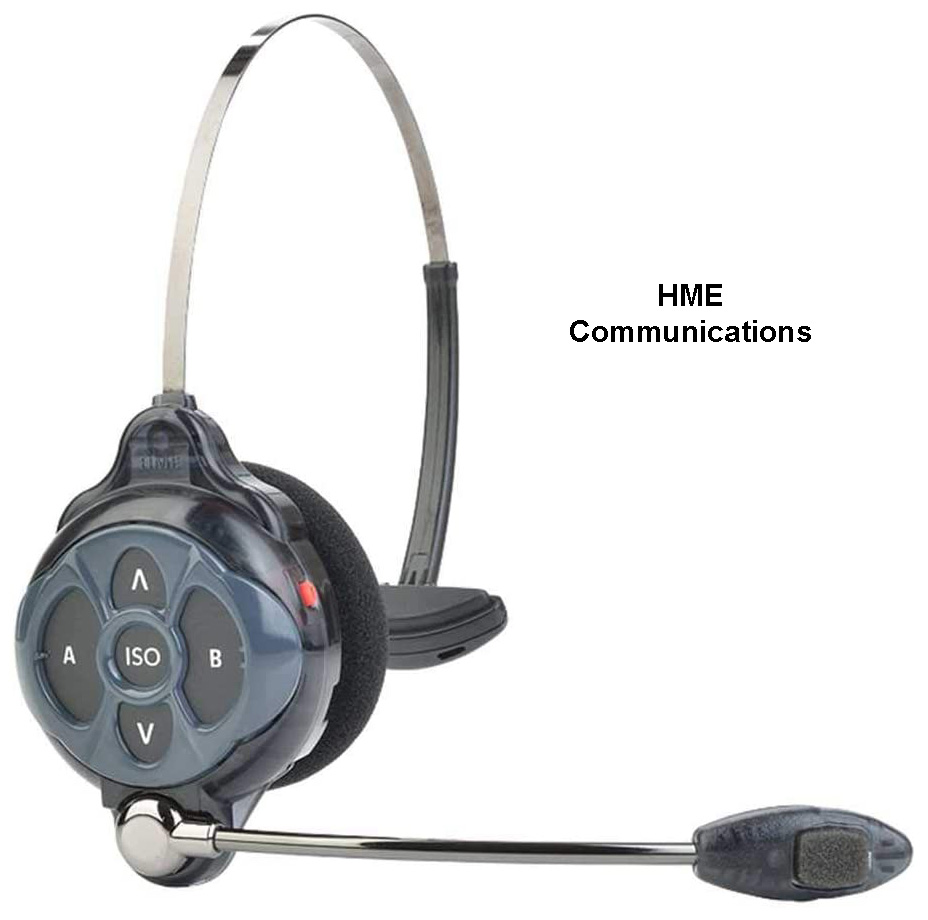

HME Communications

We offer the highest quality of wireless communication systems at Patriot Camera Cars. The DX410 is a two-channel digital wireless system, operating in the 2.4GHz band that delivers an overall better experience in performance, range and sound. The system features 7kHz wideband audio, 2-wire and 4-wire bridging, and 2-wire auto-knolling for fast integration with Clear-Com or TW wired party-line systems.

Features:
Two-channel
2.4GHz frequency range
7 kHz wide band audio
Up to 15 belt packs and/or all-in-one headsets on a single system
Up to 12 hours of battery life

Specifications:

Audio
Channels: 2 audio channel
Frequency Range: 2400 MHz – 2483.5 MHz
Frequency Response: 200 Hz – 7 kHz
Antenna: Internal, horizontal/vertical diversity
Headset Connector: 4-pin, mini-DIN
Spectrum (FHSS)
Microphone: Electret
Headset Output: 160mW into 32 Ohms
System Distortion: <2%
Controls: Power, Volume-Up, Volume-Down, A, B, ISO
Indicators: Dual-color LED (red/green)
Battery Requirements: 3.6V lithium-ion
Battery Life: Up to 12 hours

Antenna
Internal

Transmitter
Type: Frequency Hopping, Spread
Transmit Power: 100mW burst
Modes: Momentary or Latch
Type: Gaussian filtered FSK, TDMA
Frequency Stability: 13 ppm
Harmonics/Spurious: Exceeds FCC
and ETSI specifications

Receiver
Type: Frequency Hopping, Spread Spectrum (FHSS)
RF Sensitivity: -90dBm w 10-3 BER
Frequency Stability: 13 ppm
Distortion: <2%

Environmental
32°F to +122°F
(0°C to +50°C)

Weight
3.5 oz (0.10kg) including battery
