Libra

The Libra is a digitally stabilized 3 axis remote head, that has become a leader in the motion picture industry for it’s consistent performance and adaptability to multiple platforms such as cranes, insert cars, boats, etc. It is light weight at just 56lbs ( 25.4Kg) (with no Isodamp) but has a max payload of 150lbs (68Kg). The Libra head is also sealed making it a dependable choice when shooting in wet or harsh environments.

Specifications:
Mount: Standard Mitchell mount
Weight: 56lbs (25.4Kg) with no Iso-damp
66lbs (29.9Kg) with the Iso-damp

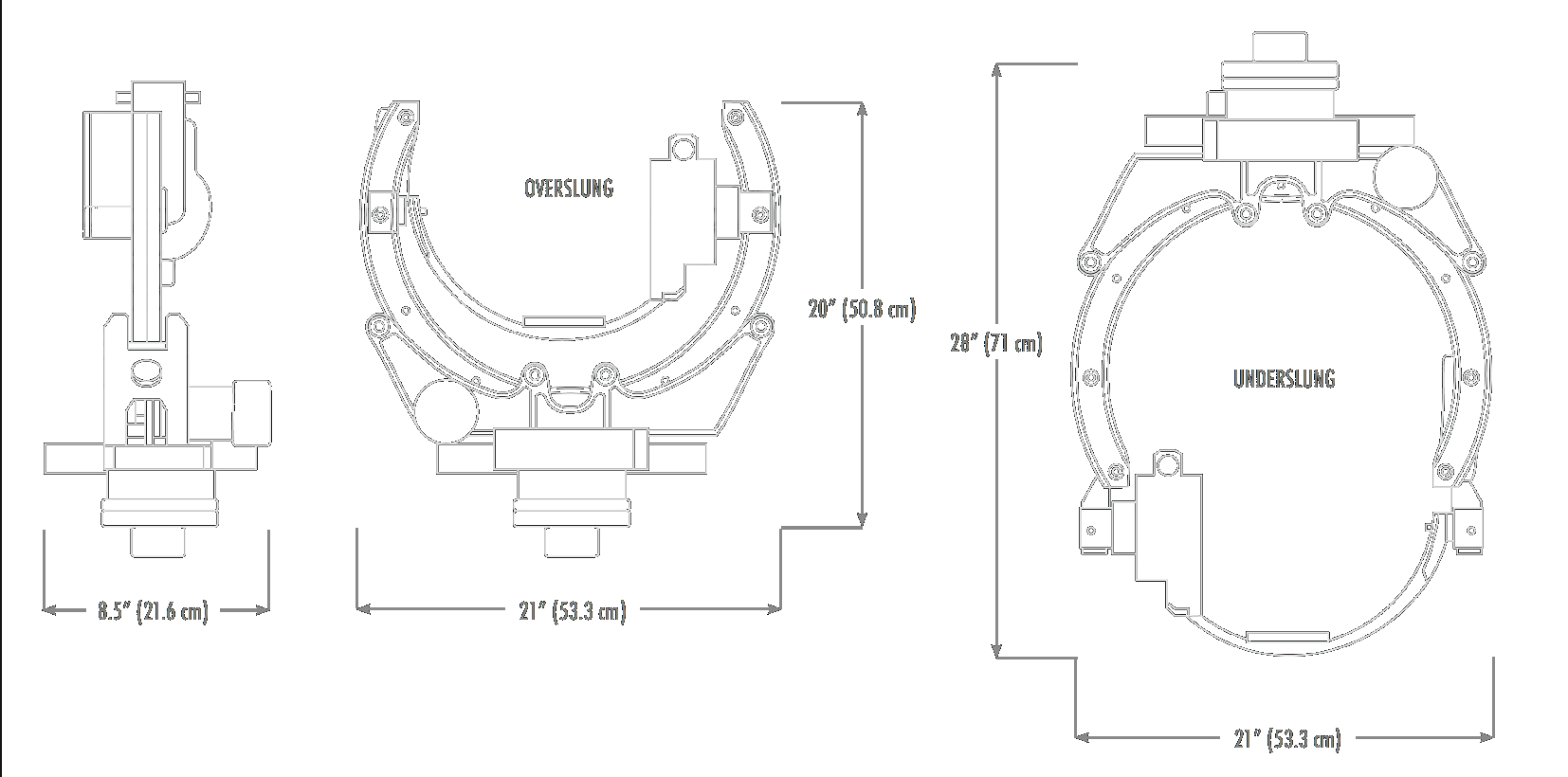

Under slung:
Length: 28” (71cm)
Width: 21” (53.3cm)
Depth: 8.5” (21.6cm)
Upright:
Height: 20” (50.8cm)
Width: 21” (53.3cm)
Depth: 8.5” (21.6cm)
Pan: 355 degrees
Tilt: 360 degrees (depending on camera package)
Roll: 40 degrees on either side of the horizon
Auto horizon leveling
Max speeds: Pan & tilt: 300 degrees a sec / Roll: 100 degrees a sec.
Max Payload: 150lbs (68Kg)
Power: Battery: 28-36v DC/ Mains: AC 90-250v/ AC 50-60Hz
